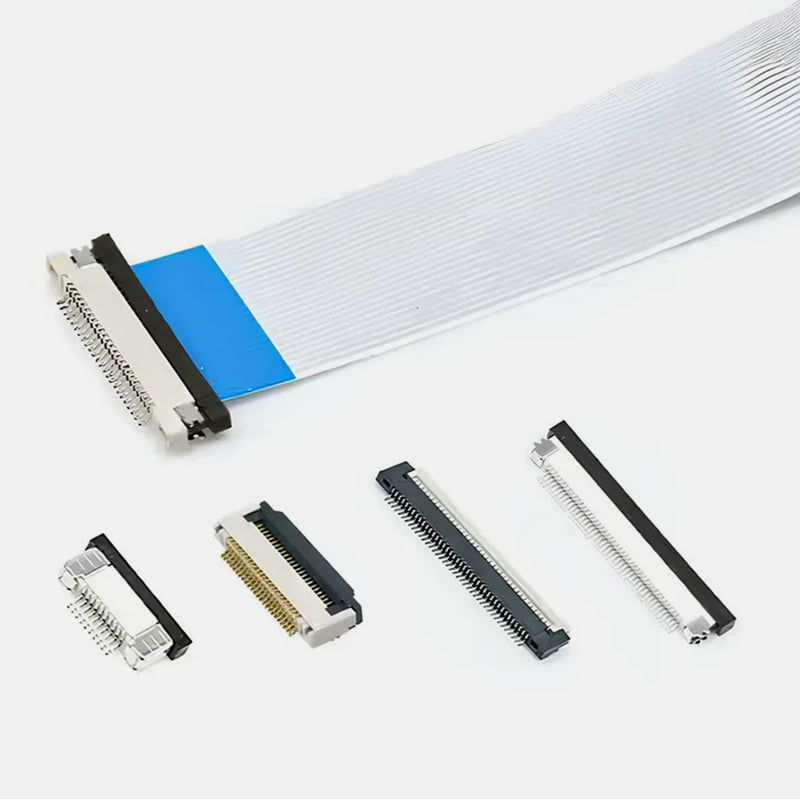

Precision FFC FPC Connector Solutions
From 4 to 40 pins, 0.5mm to 1.0mm pitch. ZIF, socket, and mounted types. Supporting compact consumer electronics to rugged industrial systems.
Smaller Pitch. Higher Current. Extreme Reliability.
FFC/FPC connectors engineered for the limits of modern design. From 0.2mm ultra-fine pitch to 3.0A high-current carrying capacity, our connectors ensure a secure ZIF contact system rated for over 30 mating cycles. Available in 0.5mm to 2.54mm pitch options, with vertical, right-angle, and horizontal orientations to fit any PCB layout.
Dual Cantilever Contacts
Low contact resistance, stable conduction
High-Temp Materials
LCP/PA9T, supports lead-free reflow
Reinforced Metal Latch
Prevents vibration loosening
Long Mating Life
≥50 cycles, up to ≥100 for some models
Specifications & Selection Guide
Key parameters for common models to help you make the right choice
| Model Number | Pitch (mm) | Height (mm) | Pin Count | Type | Typical Application |
|---|---|---|---|---|---|

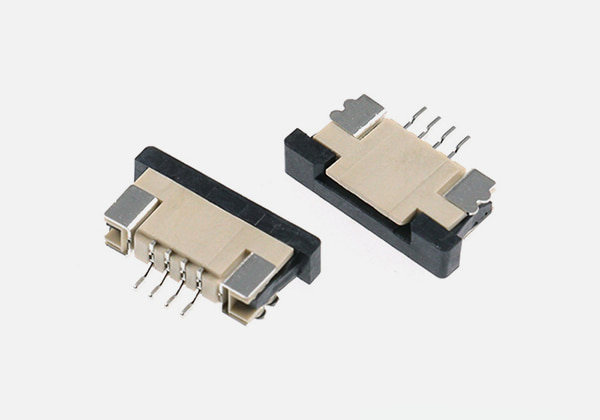

| FFC-04-0.5-SMT | 0.5 | 1.5 | 4 | Bottom Contact | Camera Module |

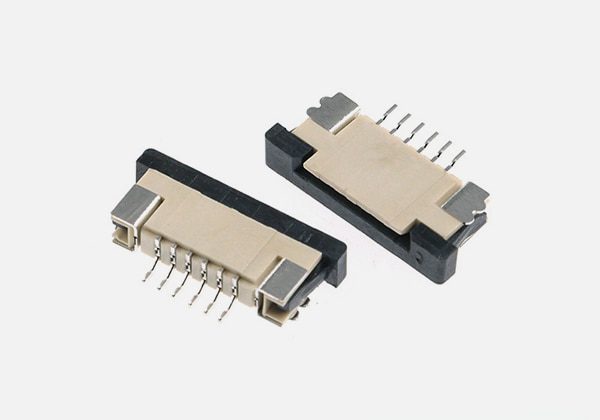

| FFC-06-1.0-ZIF | 1.0 | 2.0 | 6 | ZIF Top Contact | Display Panel |

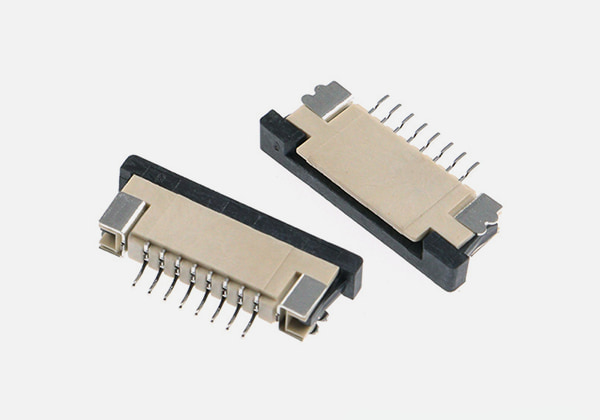

| FFC-08-0.5-SMT | 0.5 | 1.5 | 8 | Bottom Contact | Mobile Phone |

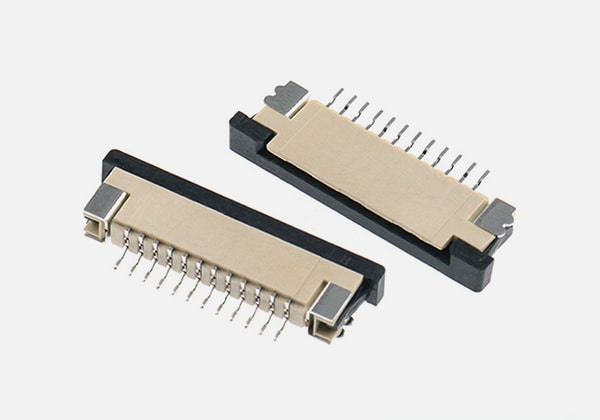

| FFC-12-1.0-THT | 1.0 | 2.5 | 12 | Through Hole | Industrial Control |

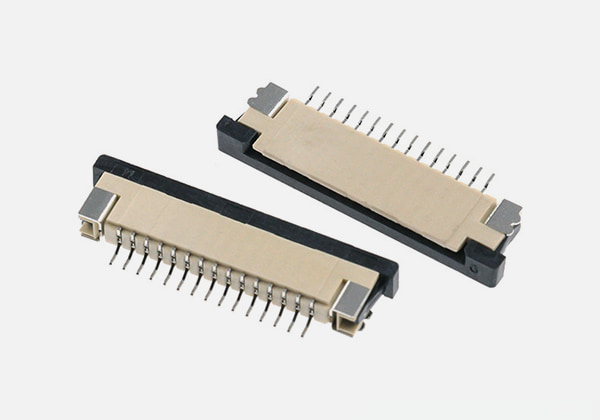

| FFC-15-0.5-ZIF | 0.5 | 1.8 | 15 | ZIF Bottom Contact | LCD Module |

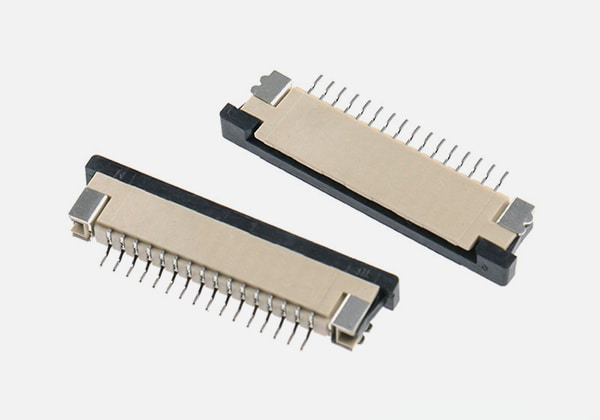

| FFC-16-1.0-SMT | 1.0 | 2.0 | 16 | Top Contact | Automotive HMI |

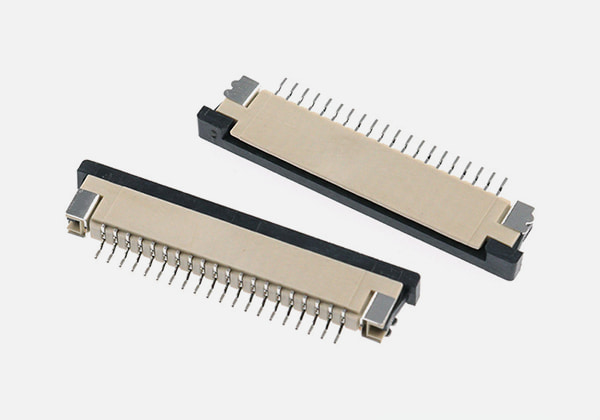

| FFC-20-0.5-ZIF | 0.5 | 1.5 | 20 | ZIF Bottom Contact | Medical Device |

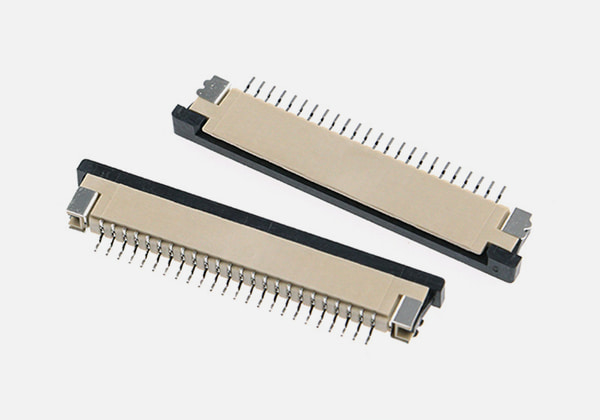

| FFC-24-1.0-SMT | 1.0 | 2.2 | 24 | Bottom Contact | Network Equipment |
| FFC-40-0.5-ZIF | 0.5 | 1.8 | 40 | ZIF Top Contact | High-Speed Data |
Need Complete Specifications?
Download our full product catalog with detailed drawings and datasheets
Complete Product Series
Choose from 14 standard series or customize to your exact specifications
Application Scenarios
Real-world applications across diverse industries
Consumer Electronics
- Smartphone camera modules
- Tablet display panels
- Laptop touchpad connections
Automotive Electronics
- Dashboard displays
- Navigation modules
- Vehicle lighting control
Industrial Equipment
- Industrial cameras
- PLCs and controllers
- Servo drive systems
Medical Electronics
- Portable patient monitors
- Ultrasound probes
- Diagnostic equipment
Communication Devices
- Base station internals
- Switch board connections
- Router interfaces
Smart Home Devices
- Security cameras
- Smart displays
- IoT sensors
FFC FPC Connector Precision Engineering
High-precision interconnection solution manufactured under strict tolerance control, featuring durable contact designs and reliable mating cycles for demanding applications. Each connector undergoes rigorous automated optical inspection and electrical testing to ensure consistent performance and long-term reliability.
Certifications & Compliance

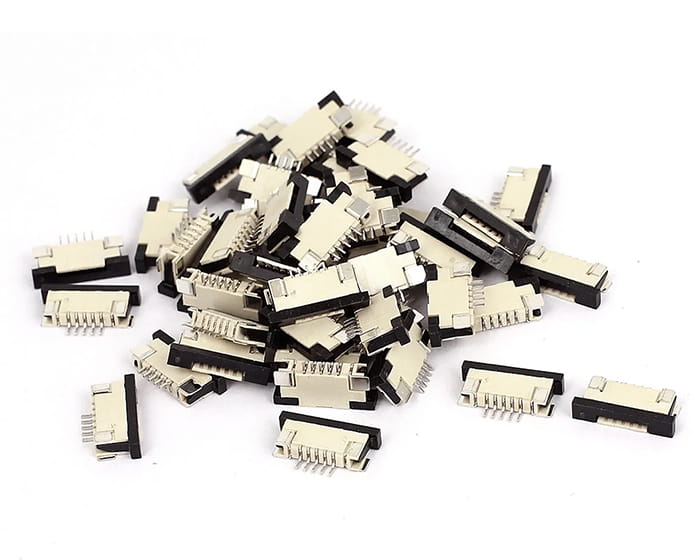

Precision Manufacturing Process
Strict Process Control for Consistent Connector Quality
-
Design & DFM
Optimize layout for manufacturability using advanced CAD, ensuring signal integrity and cost efficiency.
-
Material Prep
Inspect high-grade LCP/PI and copper for purity, thickness, and consistency before production.
-
Stamping/Plating
Form contacts with precision gold plating to ensure low contact resistance and enhanced durability.
-
Assembly
Automate insertion and molding processes to guarantee consistent pitch and mechanical stability.
-
Testing
100% electrical and mechanical inspection, including insertion force and contact resistance tests.
-
Packing
Anti-static packaging with moisture-proof bags to protect connectors during storage and transport.
Quality Assurance & Manufacturing
State-of-the-art facilities ensuring consistent quality

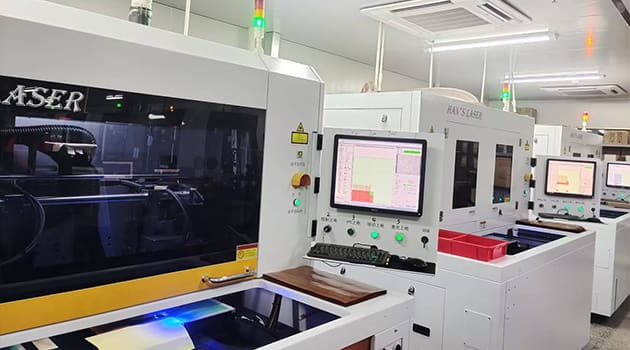

Automated Production Line
Fully automated assembly and inspection for consistency
- SMT placement
- Automated testing
- Vision inspection

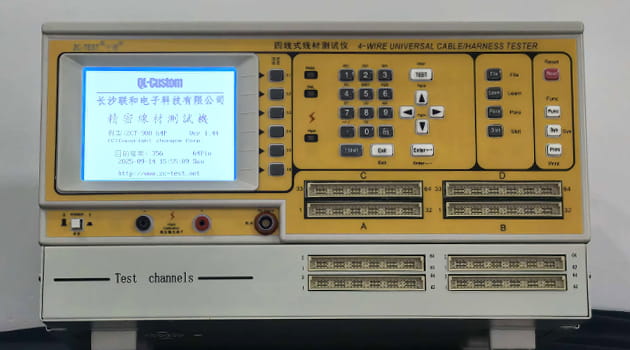

Advanced Testing Equipment
Comprehensive quality control at every stage
- 2D image measurement
- Contact resistance testing
- Mating cycle testing

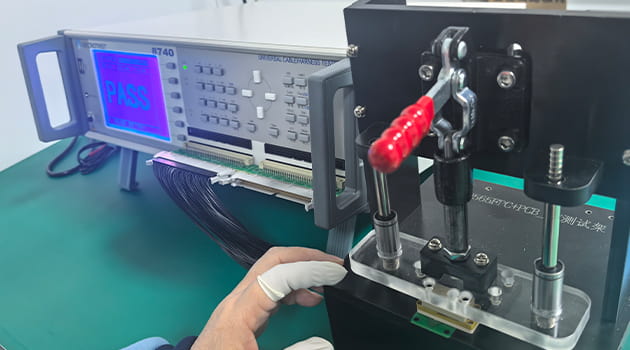

Quality Commitment
100% inspection with detailed test reports
- Visual inspection
- Electrical testing
- Test certificates
Standard Products Not Enough?
We Customize!
Our engineering team works with you to create the perfect connector for your unique requirements
Customizable Options:
- Non-standard pin counts
- Polarization features
- High-temp materials
- Special height/pitch
- Custom latch direction
- Special plating options
Customer Success Stories
Proven performance in real-world applications
Required ultra-compact 0.5mm pitch 15-pin connector for foldable phone camera module
Result:
100K+ bend cycles achieved, now in mass production for 2M+ units annually
Challenge:
Needed high-temp resistant 24-pin connector for dashboard display in harsh environment
Result:
Passed AEC-Q200 qualification, operating at -40°C to +125°C reliably
Challenge:
Custom 12-pin ZIF connector for portable ultrasound probe with frequent cable changes
Result:
ISO 13485 certified, ≥200 mating cycles validated, zero field failures
Frequently Asked Questions
Request Technical Support
Get expert assistance for your connector selection
Ready to Find Your Perfect Connector?
From standard products to fully customized solutions, we have the expertise to support your project
