Standard Pitch Selection for FFC/FPC

QL-Custom provides complete FPC/FFC product series with pitch coverage from 0.3mm to 3.5mm, supporting full customization

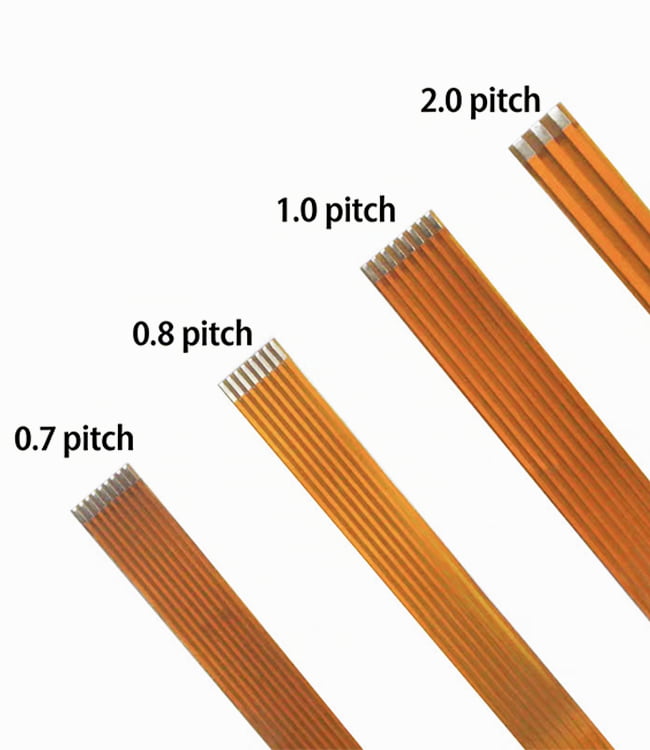

What is Pitch?

Pitch Category Overview

Select the pitch that matches your design requirements

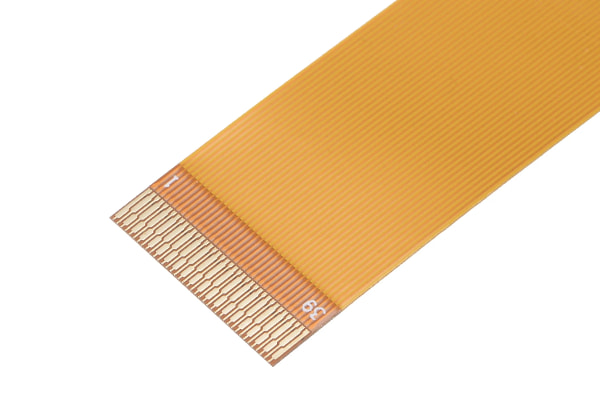

0.3mm Pitch

Ultra-fine pitch for maximum density in compact devices

0.4mm Pitch

Balanced design for space-constrained applications

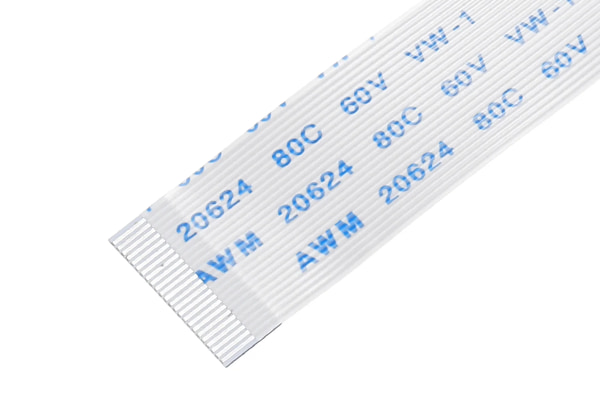

0.5mm Pitch

Industry standard for consumer electronics

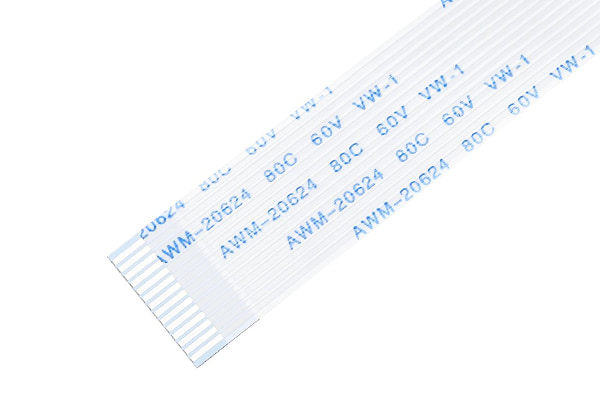

1.0mm Pitch

Versatile pitch for various industrial applications

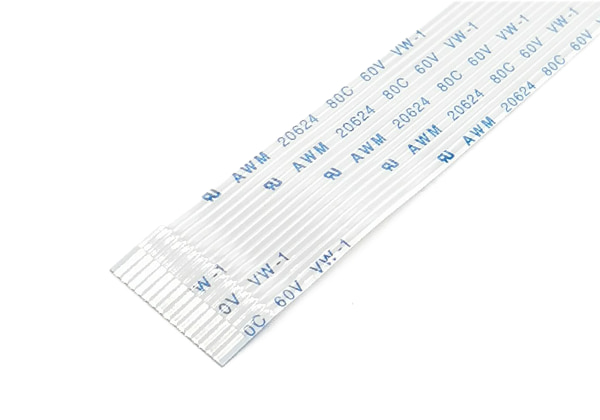

1.25mm Pitch

Robust connections for demanding environments

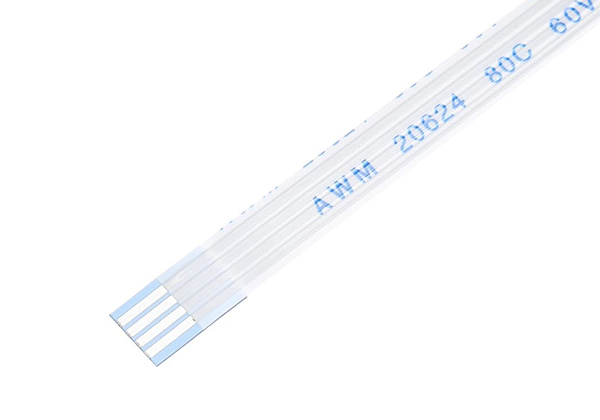

1.27mm Pitch

Compatible with standard IDC connectors

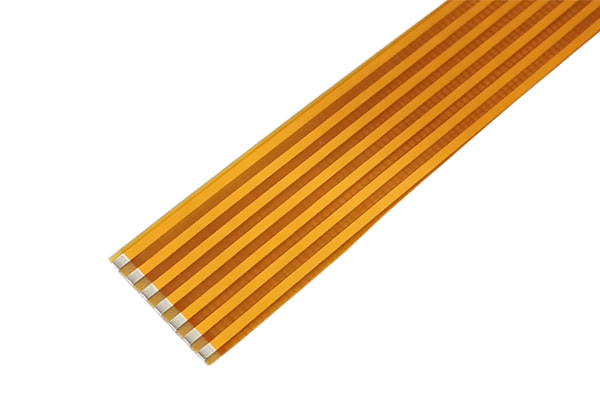

2.54mm Pitch

Standard 0.1" pitch for universal compatibility

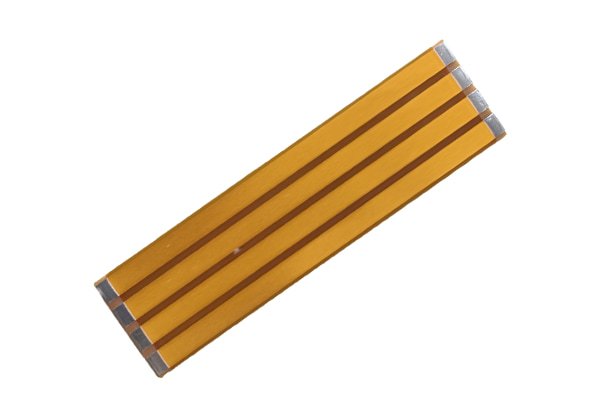

3.5mm Pitch

Extra-wide pitch for specialized applications

Quick Comparison Guide

0.3-0.5mm

Fine Pitch

Maximum density for compact consumer devices

1.0-1.27mm

Standard Pitch

Balanced performance for industrial applications

2.54mm+

Large Pitch

Easy assembly and prototyping applications

No Pitch You Can't Find,
Only Customization Beyond Imagination

Whether you need non-standard pitch, multi-layer composite, or special shielding structure, our engineers can create a tailored solution for you

Custom Pitch Values

Any pitch from 0.2mm to 50mm+

Advanced Structures

Complex multi-layer configurations

Special Shielding

Custom EMI/RFI protection

Application Industries

Our products are widely used in multiple high-tech fields

Consumer Electronics

Smartphones, tablets, laptops, wearable devices

Aerial Equipment

Drones, action cameras, professional photography equipment, gimbals

Medical Devices

Patient monitors, diagnostic devices, imaging equipment

Automotive Electronics

Dashboard displays, ADAS cameras, sensor connections, infotainment systems

Industrial Automation

Industrial robots, PLC controllers, automated production lines, sensor networks

Communication Equipment

5G base stations, network equipment, data centers, communication modules

High-Precision Pitch Control & Reliability

All products maintain strict pitch tolerances through automated optical inspection, ensuring consistent contact alignment and reliable signal transmission across every custom length.

Quality Certifications

Certified manufacturing processes ensuring consistent quality

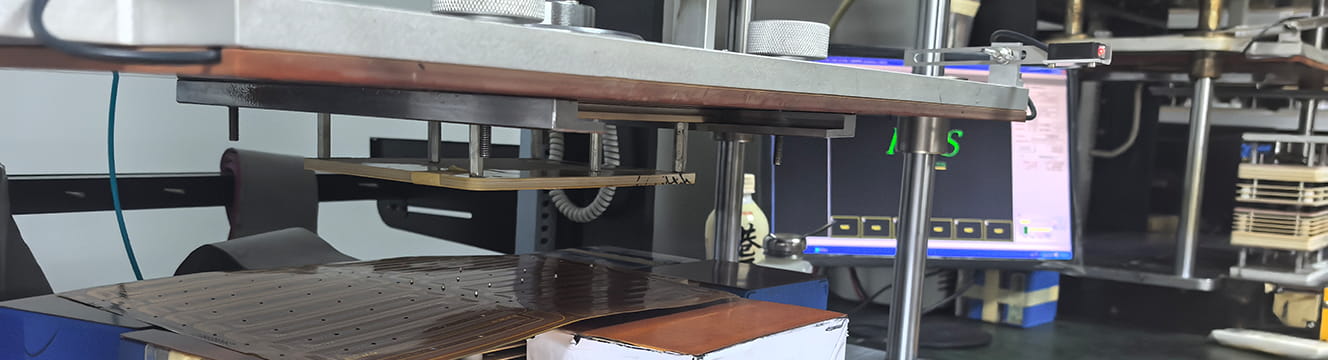

Technical Excellence & Quality Assurance

Pitch-related technical capabilities ensuring superior performance

High-Precision Tooling

±0.03mm Tolerance Control

Custom precision molds ensure consistent pitch accuracy across all production runs, maintaining tight tolerances even for ultra-fine pitch designs.

CNC machined tooling

Impedance Matching

Signal Integrity Guaranteed

Advanced impedance matching design ensures high-speed signal integrity, with TDR testing validating performance for each pitch configuration.

Controlled impedance

Automated Inspection

Zero Defect Commitment

Full automated optical inspection eliminates shorts and opens, with 100% testing of pitch accuracy and conductor alignment.

AOI + electrical test

Customer Success Stories

Proven performance in real-world applications

“Best cable supplier we’ve worked with. Technical support is responsive and knowledgeable. Custom orders arrive on time every time.”

Robert Brown

“Quality is consistent batch after batch. UL certification documentation is always complete. Our quality team is very satisfied.”

Sarah Thompson

Success Stories Across Pitches

Real-world applications showcasing our pitch expertise

Consumer Electronics 0.5mm Pitch

Global Smartphone Leader

Challenge:
Required ultra-compact 0.5mm pitch FPC for foldable display with extreme bend radius

Solution:
Developed custom multilayer 0.5mm pitch design with reinforced bend zones

Result:
3M+ units shipped annually, zero field failures, customer expanded to 5 product lines
Automotive 1.0mm Pitch

Automotive Tier-1 Supplier

Challenge:
Needed 1.0mm pitch cable for dashboard cluster, operating -40°C to +125°C

Solution:
Custom high-temp polyimide with 1.0mm pitch, AEC-Q200 qualified

Result:
Passed 2000hr thermal cycling, now standard in 500K+ vehicles per year
Industrial 1.27mm Pitch

Industrial Automation OEM

Challenge:
Required custom 1.27mm pitch cable compatible with legacy IDC connectors

Solution:
Engineered hybrid design matching 1.27mm IDC standard with modern FPC construction

Result:
Enabled smooth migration from ribbon cables, 200K+ units deployed globally

Frequently Asked Questions

Everything you need to know about FFC cables

What pitch should I choose for my application?

The pitch selection depends on your space constraints and pin density requirements. 0.3-0.5mm pitch is ideal for compact consumer electronics, 1.0-1.27mm for industrial applications, and 2.54mm for prototyping and standard interfaces. Our engineers can help you determine the optimal pitch for your specific needs.

Can you manufacture non-standard pitch values?

Yes, we specialize in custom pitch manufacturing. We can produce FFC/FPC cables with any pitch from 0.2mm to 50mm or beyond. Share your requirements with us, and our engineering team will develop a solution tailored to your exact specifications.

How does pitch affect signal integrity?

Smaller pitch (0.3-0.5mm) requires careful impedance control and routing to maintain signal integrity, especially for high-speed signals. Larger pitch (1.0mm+) provides better isolation and is more forgiving. We design all our cables with controlled impedance and proper shielding to ensure reliable signal transmission regardless of pitch.

What is the minimum order quantity for custom pitch cables?

Our MOQ for standard pitch products starts at 100 pieces. For custom pitch designs, the MOQ is typically 500-1000 pieces depending on complexity. We also offer prototyping services with as few as 10 pieces to validate your design before mass production.

Do different pitches have different current ratings?

Yes, pitch directly affects current carrying capacity. Larger pitch allows for wider conductors, which can handle higher currents. We can design cables with appropriate conductor widths and copper thickness to meet your current requirements while maintaining the specified pitch.

Find Your Perfect Pitch Match Today

From standard 0.3mm to custom 50mm pitch, we have the expertise and capacity to deliver exactly what you need
